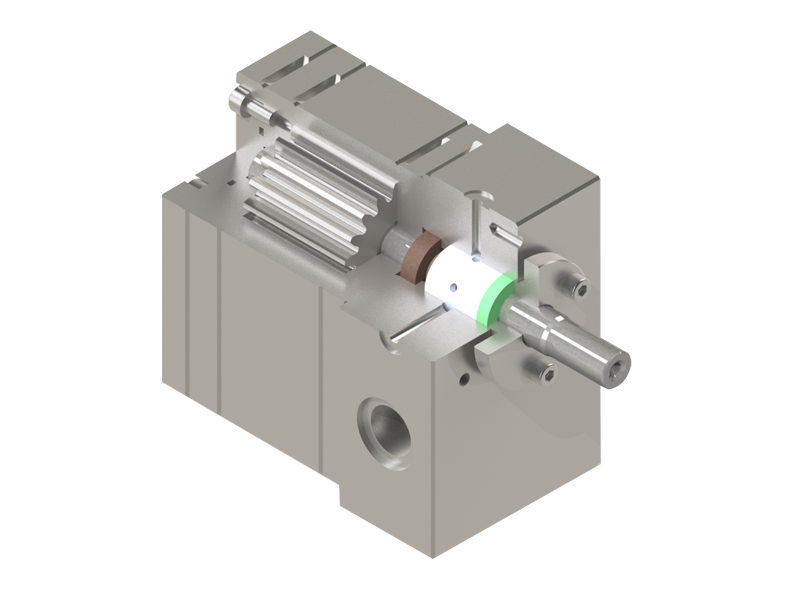

OM-CT 低粘泵
●The gear pump can be used for general chemical process.
●Suitable for very low viscosity
●Accurate flow rate
●Precise structure
●Minimal pulsation
Gear
High temperature tool steels, nitrided steels, CPM, special steels and coated gears

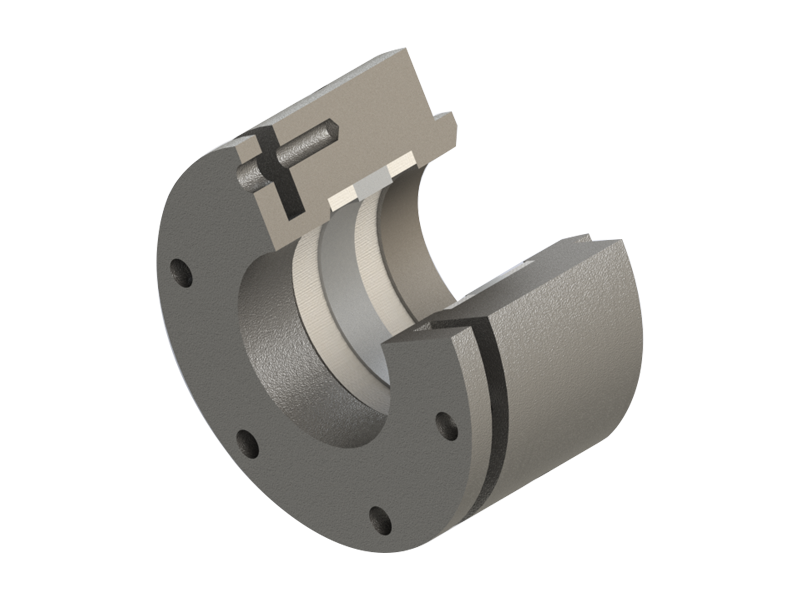

Sliding Bearing
Tool steels, silver-nickel alloys, copper-aluminum alloys, CPM, specialty materials and coated bearings
Pump Body
Heat-resistant carbon steel, stainless steel, chromium-nickel alloy steel, CPM, high temperature tool steel, titanium-tantalum alloy and coated pump body

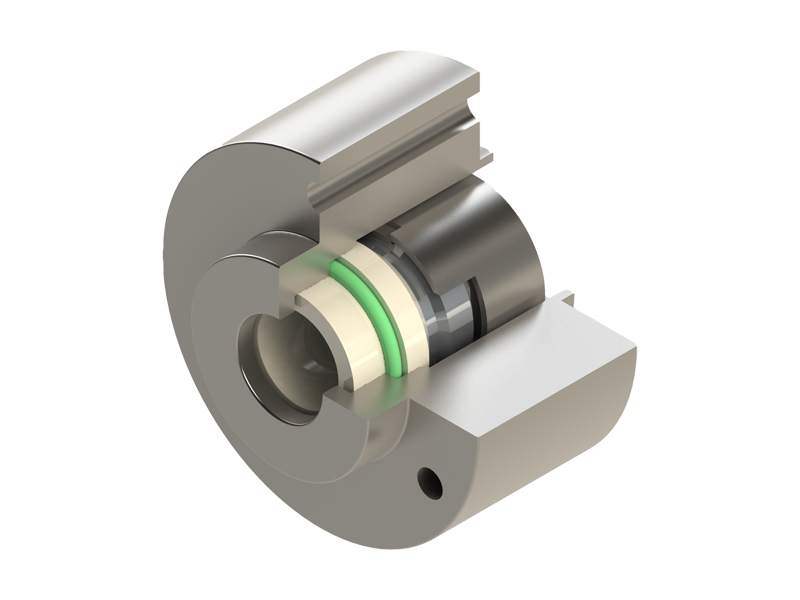

Shaft Seal
Mechanical seal, spiral seal, packing seal, combined seal
Adhesives, detergents, plastics, tar, additives, emulsifiers, polyurethane, epoxy resin, plasticizers, varnish, asphalt, chemical fibers, pigments, viscose, resin, paraffin, fillers, paints, cosmetics, fuel and other materials.
| Material viscosity | Max≤100Pa.s（≤100000cP） |
| Work Temperature | Max≤400℃（752℉） |
| Outlet pressure | Max≤40MPa(400bar) |
| Heating mode | Electric heating, heat medium heating |
| The above values are the max ones allowed, which may not be reached under certain circumstances | |
| Model | ml/r | Model | ml/r | |
| CT-1 | 1 | CT-700 | 700 | |
| CT-3 | 3 | CT-800 | 800 | |
| CT-5 | 5 | CT-1000 | 1000 | |
| CT-10 | 10 | CT-1200 | 1200 | |
| CT-20 | 20 | CT-1400 | 1400 | |
| CT-30 | 30 | CT-1600 | 1600 | |
| CT-50 | 50 | CT-2000 | 2000 | |
| CT-100 | 100 | CT-2500 | 2500 | |
| CT-150 | 150 | CT-3200 | 3200 | |
| CT-200 | 200 | CT-4300 | 4300 | |
| CT-300 | 300 | CT-6300 | 6300 | |
| CT-400 | 400 | CT-8000 | 8000 | |
| CT-500 | 500 | CT-9000 | 9000 | |
| CT-600 | 600 | CT-12000 | 12000 |
（For other specifications, please contact the supplier for details, special customization is available）
