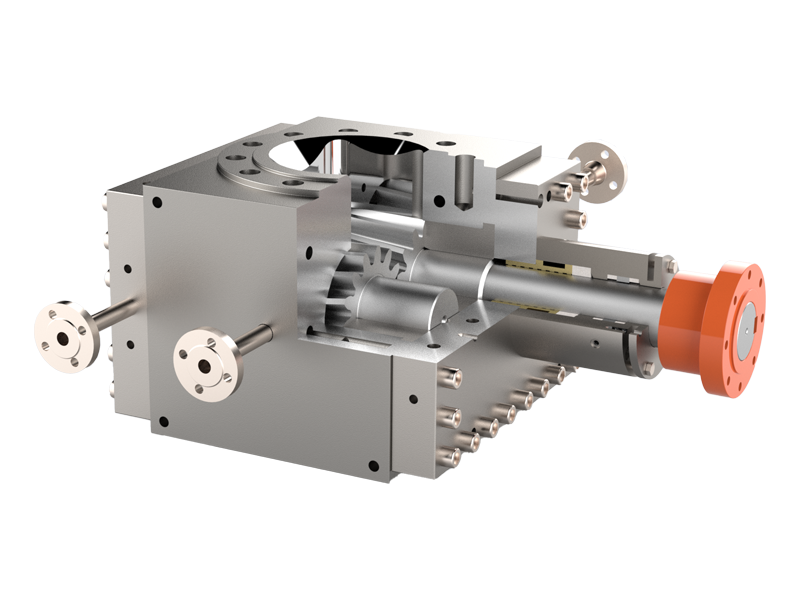

OM-KS系列釜底出料泵
●OM-KS gear pump is used to convey medium and high viscosity media in reactors, mainly used for conveying polymers and prepolymers
●OM-KS gear pump has a large suction diameter, and high-viscosity materials can be smoothly sucked into the gear pump under vacuum or lower pressure.
●High reliability
●Efficient conveying
Gear
Stainless steel， Nitrided steels, tool steels, Hastelloys, special steels and coated gear shafts.
Sliding Bearing
Tool steels, copper-aluminum alloys, silver-nickel alloys, specialty materials and coated sliding bearings.
Pump Body
Stainless steel, carbon steel, nitrided steel, Hastelloy and coated pump bodies.
Shaft Seal
(Vacuum) Screw seal, packing box seal, combination seal of screw seal and packing box seal or combination seal of screw seal and lipped seal, double mechanical seal with flushing liquid.
PET, PBT, PTT, PA, PC, PS, PB, SAN, ABS, HIPS, PP, PE, POM, EVA, PLA, PEEK, TPU, TPE, PMMA and raw liquor, solutions, oligomers, and prepolymers in the industry of other high polymer materials.
| Material Viscosity | ≤ 40,000Pa.s（≤40,000,000cP） |
| Work Temperature | ≤ 350℃（662°F） |
| Heating mode | Heat transfer oil or steam |
| OM-KSL Low pressure Bottom Discharge Pump | Inlet Pressure |
Vacuum-5.0MPa(50bar) |
OM-KSH Heigh pressure Bottom Discharge Pump | Inlet Pressure |
Vacuum-5MPa(50bar) |
| Differential Pressure |
≤ 5.0MPa(50bar) |
Differential Pressure |
≤ 25.0MPa(250bar) |
||
| The above values are the max ones allowed, which may not be reached under certain circumstances | |||||
| Model | ml/r | Model | ml/r | |
|
KS-5
|
5 | KS-1200 | 1200 | |
|
KS-10
|
10 | KS-1400 | 1400 | |
|
KS-20
|
20 | KS-1600 | 1600 | |
|
KS-30
|
30 | KS-2000 | 2000 | |
|
KS-50
|
50 | KS-2500 | 2500 | |
| KS-100 | 100 | KS-3200 | 3200 | |
| KS-150 | 150 | KS-4300 | 4300 | |
| KS-200 | 200 | KS-6300 | 6300 | |
| KS-300 | 300 | KS-8000 | 8000 | |
| KS-400 | 400 | KS-9000 | 9000 | |
| KS-500 | 500 | KS-12000 | 12000 | |
| KS-600 | 600 | KS-18000 | 18000 | |
| KS-700 | 700 | KS-25000 | 25000 | |
| KS-800 | 800 | KS-38000 | 38000 | |
| KS-1000 | 1000 | KS-54000 | 54000 |
（For other specifications, please contact the supplier for details, special customization is available）
