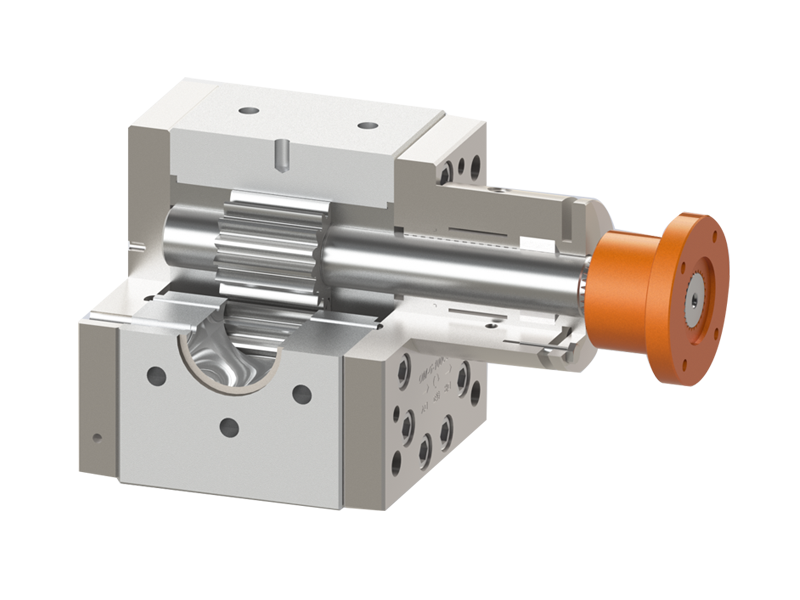

OM-G系列挤出计量泵
●The pump is mainly used in the process of rubber and plastic extrusion, supported by an extruder, it is installed at the discharge port of the extruder.
●Convey efficiently
●No pulsation
●Quick color change without blind spots
Gear
High temperature tool steels, nitrided steels, CPM, special steels and coated gears
Sliding Bearing
Tool steels, silver-nickel alloys, copper-aluminum alloys, CPM, specialty materials and coated bearings
Pump Body
Heat-resisting carbon steel, stainless steel, chromium-nickel alloy steel, CPM, high-temperature tool steel, titanium-tantalum alloy and coated pump body
Shaft Seal
Spiral seal,packing box seal, combined bearings.
Media such as polypropylene, hot melt adhesive, cellulose, fluoropolymer, polysulfone, polyester, PC, PUR, PEEK, HIPS, ABS, PE, PP, PVC, PMMA, SMA, LLDPE, PS, PA, PLA , PVA, PVB, TPU, TPE, POM, HDPE, PB, PTT, PBT, PET, SAN, PIB, EVA and other polymer materials.
| Material Viscosity | Max≤30,000Pa.s（≤30,000,000cP） |
| Work Temperature | Max≤500℃（≤932℉） |
| Heating mode | Liquid phase (heat transfer oil) or gas phase (steam) electric heating |
|
OM-GL Low Pressure Extruding and metering Pump |
Pressure at outlet | Max≤40MPa(400bar) |
|
OM-GH High Pressure Extruding and metering Pump |
Pressure at outlet | Max≤70MPa(700bar) |
| The above values are the max ones allowed, which may not be reached under certain circumstances | ||
| Model | ml/r | Model | ml/r | |
| G-1 | 1 | G-700 | 700 | |
| G-3 | 3 | G-800 | 800 | |
| G-5 | 5 | G-1000 | 1000 | |
| G-10 | 10 | G-1200 | 1200 | |
| G-20 | 20 | G-1400 | 1400 | |
| G-30 | 30 | G-1600 | 1600 | |
| G-50 | 50 | G-2000 | 2000 | |
| G-100 | 100 | G-2500 | 2500 | |
| G-150 | 150 | G-3200 | 3200 | |
| G-200 | 200 | G-4300 | 4300 | |
| G-250 | 250 | G-6300 | 6300 | |
| G-300 | 300 | G-8000 | 8000 | |
| G-400 | 400 | G-9000 | 9000 | |
| G-500 | 500 | G-12000 | 12000 | |
| G-600 | 600 | G-18000 | 18000 |
（For other specifications, please contact the supplier for details, special customization is available）
