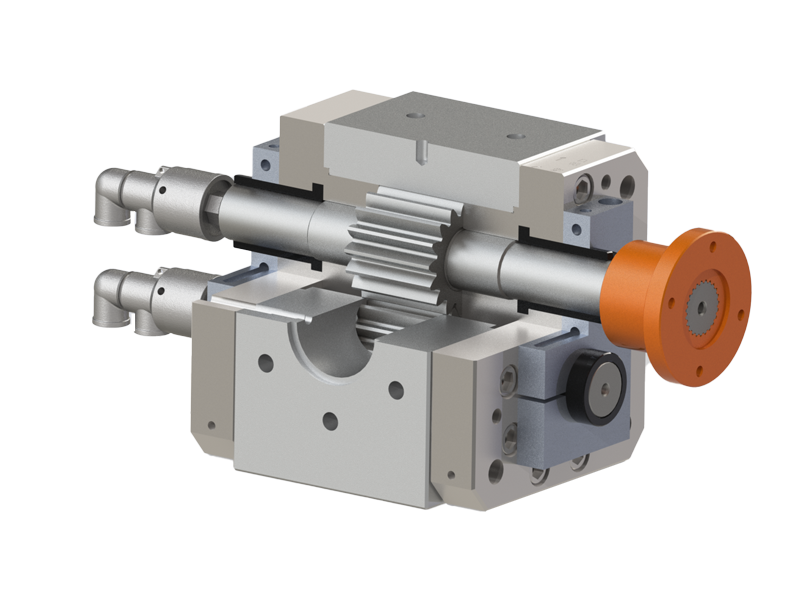

OM-R系列橡胶齿轮泵
●The pump is mainly used in the process of rubber and elastomer extrusion, the built-in cooling channels make the temperature control more precise and quicker, supported by extruders or closed plasticators. (Melt gear pump for extrusion systems dedicated to rubber and elastomers.)
●Suitable for conveying rubber and elastomer melts; generally installed between the extruder outlet and the die head, used as a melt metering pump; the pump series have built-in flow channels, which can be used for cooling or heat medium heating.
●Efficient transportation
●No pulsation
●Quick color change without blind spots
●Internal cooling, accurately controls of material temperature
Gear
Tool steel, specially coated
Tooth shapes include straight teeth, helical teeth, and herringbone teeth (used in conditions with particularly low pressure pulsation at the outlet)
Sliding Bearing
Tool Steel,Special Materials.
Pump Body
Alloy,Carbon Steel,other materials can be supplied on request.
Shaft Seal
Spiral seal , packing box seal, combined seal.
Rubber and elastomer materials: NR, BR, CR, NBR, IR, IIR, SBR, HNBR, EPM, EPDM, PU, TPU, ACM, CSM ECO, SI, etc
Material Viscosity | Max≤40,000Pa.s(≤40,000,000cP) |
Work Temperature | Max≤350℃(≤662℉) |
Heating mode | Electric heating, heat medium heating |
OM-RL Low Pressure Rubber Gear Pump |
Pressure at outlet | Max≤40MPa(400bar) |
OM-RH High Pressure Rubber Gear pump |
Pressure at outlet | Max≤70MPa(700bar) |
The above values are the max ones allowed, which may not be reached under certain circumstances |
Model | ml/r | Model | ml/r | |
R-1 | 1 | R-700 | 700 | |
R-3 | 3 | R-800 | 800 | |
R-5 | 5 | R-1000 | 1000 | |
R-10 | 10 | R-1200 | 1200 | |
R-20 | 20 | R-1400 | 1400 | |
R-30 | 30 | R-1600 | 1600 | |
R-50 | 50 | R-2000 | 2000 | |
R-100 | 100 | R-2500 | 2500 | |
R-150 | 150 | R-3200 | 3200 | |
R-200 | 200 | R-4300 | 4300 | |
R-250 | 250 | R-6300 | 6300 | |
R-300 | 300 | R-8000 | 8000 | |
R-400 | 400 | R-9000 | 9000 | |
R-500 | 500 | R-12000 | 12000 | |
R-600 | 600 | R-18000 | 18000 |
(For other specifications, please contact the supplier for details, special customization is available)
